RFID standalone access control is usually one or two small units wired directly onto a door panel to control access to the door. There is no need for a PC network and you don’t have to secure every single door within your building, only those you wish to.
For standalone access control systems, all electronics are installed in a keypad or reader - there are no additional components or peripherals, including extra wiring, routers, sensors and alarms.
FEATURES
• High-quality components
• Precision electronic components with stable performance
• No user limit
• Support 1000 groups of personal passwords
• With relay output and level output for electric lock
TECHNICAL DATA
• Type: Standalone access controller
• Model: EL-C02
• Working frequency: 125KHz
• Card type: EM
• Capacity: 1000 users
• Card reading distance: 1-15cm
• Working voltage: 12-30V DC
• Working current: 150mA
• Working temperature: from -10°C to 55°C
• Humidity: 90% RH (non-condensing)
• Add card method: via computer
• External device port: electric lock (including relay output and level output)
• Dimensions (HxLxD): 115x70x20mm

Teplota farby:

EL-C02

Záruka:

3+0

Model:

EL-C02

Počet pólov:

12-30V DC

Druh materiálu:

3+0

Napätie:

12-30V DC

Dĺžka:

Priemer:

Rozmer:

115x70x20mm

Typ kontaktov:

EM (RFID)

Hladina zvuku:

150mA

Výška:

Šírka:

Hmotnosť:

124 g/db

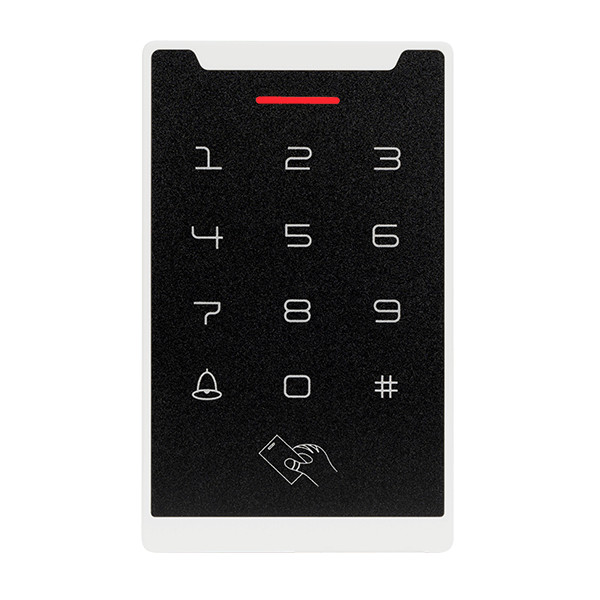

EL-C02 RFID STANDALONE ACCESS CONTROLLER 125KHz
