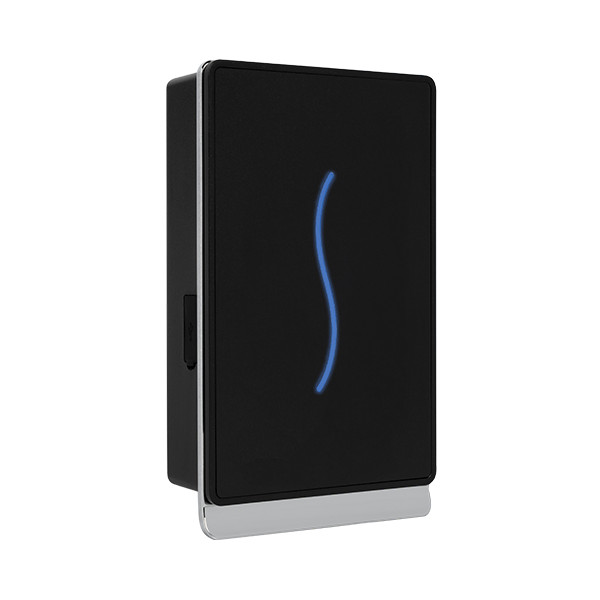

EL-SCR100 is an access control devices, which is made with elegant design. The device have lock control, alarm, exit button, door sensor. The wiegand-in interface is used to connect external reader to construct master and slave system. Also the device can be used to connect with a control panel as a reader by wiegand-out interface. The operation can be done on PC software and upload to the device through TCP/IP, RS232/485 communication. The USB-host is used for data download and upload, including user data and record etc.
EL-SCR100 is suitable for house, small office, factory etc
FEATURES
• Elegant design with Acrylic plastic
• With TCP/IP interface, avoid RS485 communication and low speed for transferring data, standalone or network deployment
• Professional access control function: 50 time zones, 5 groups, 10 open door combination, support multi users entry
• Protect the data with encrypted technology
• Built-in relay contacts lock, alarm, door sensor and exit button
• Wiegand input and output enable Master/Slaver access control
• Embedded webserver: support browser to inquire access data at local or remote.
TECHNICAL DATA
• Type: Standalone proximity controller for access control and time attendance
• Model: EL-SCR100
• Working frequency: 125KHz
• Access control Interface: 3rd party electric lock, door sensor, exit button, alarm, door bell
• Standard function: Anti-passback, webserver, 9 digital number
• Card type: EM (RFID)
• Card capacity: 30000
• Card reading distance: 5-10cm
• Transaction capacity: 50000
• Working voltage: 12V DC
• Static current: 300mA
• Wiegand signal: input and output
• Communication: TCP/IP, RS232/485, USBHost
• Working temperature: from 0°C to 45°C
• Humidity: 20-80% RH (non-condensing)
• Material: Acrylic plastic
• Dimensions (LxHxD): 95.5x153x35.5mm

EL-SCR100 IP RFID ACCESS CONTROLLER READER 125KHz
