They represent a cable terminal made of brass alloy with galvanic tin coating
and insulated with polyvinylchloride. They are used as non-insulated termnals,
as the insulated part protects the cores from bending and breaking in the
joining point and at the same time it protects the staff from direct contact
to the current-carrying parts. The connection is realized through crimping
pliers, through mechanic pressing of the terminal and conductor.

Technical characteristics:
- Material: copper alloy
- Coating: galvanic tin coating
- Insulation: polyvinylchloride
- Colours: offered in three main colours - red, blue, yellow
- Type of cable terminals:
- For multicore cables with sections to 25 mm² - cable terminals type „Е“
- For multicore cables with sections to 6 mm² - the rest types

Advantages:
- The insulation of the terminals protects from direct contact with conductive parts and adjoining connections
- Easy and quick mounting
- High quality and reliability
- Long exploitation period
- Variety of options of terminals

Functions:
- Connecting of multicore conductors without welding
- Mounting of multicore conductors in terminals
- Thermoregulators, circuit breakers and other electrical devices

Application:
- Automotive industry
- Mechanical engineering
- Electricity distribution networks

Mounting: By mechanical pressing using crimping pliers via mechanical pressing of the terminal and the cable

Standard: EN 61238-1

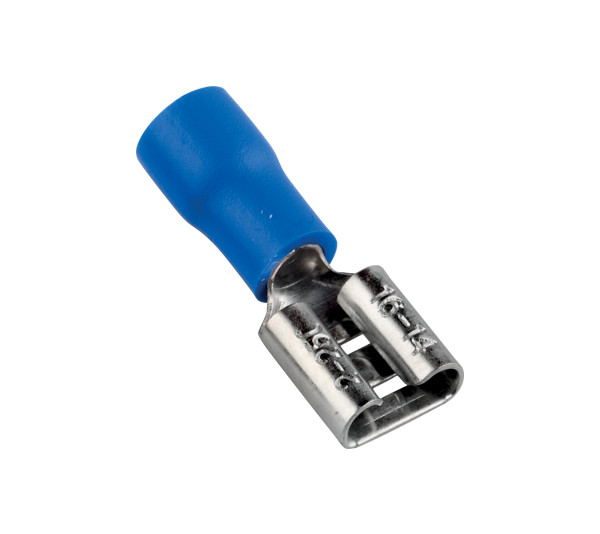

IZOLOVANÁ LISOVACIA DUTINKA DUTINKA PLOCHÁ FDD 2-250/MODRÁ (100 KS V BALÍK)
