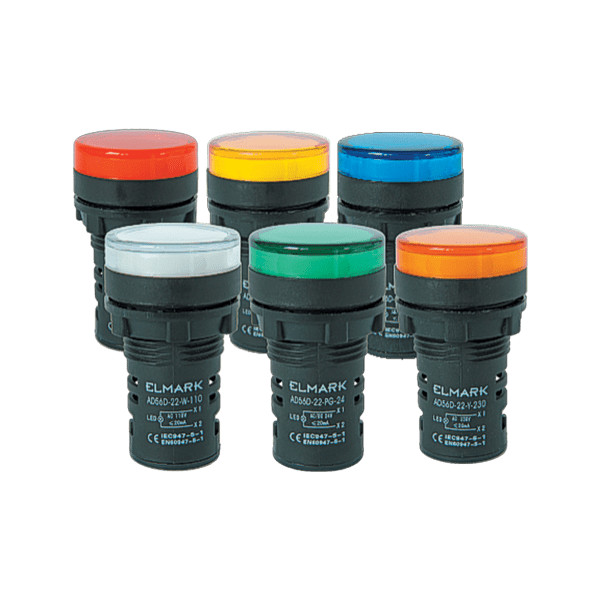

Name: LED SIGNÁLKA AAD56D-22-A-230 ORANŽ 22mm 230V AC
Brand: ELMARK
SKU: 401223
Price: 1.08 EUR
Availability: InStock

Technical characteristics:
- Insulation voltage: 660V;50/60Hz
- Surge volatge wear resistance: 6000V
- Rated current: 6А(230V АС); 0.3А(230V DC)
- IP code: IP20
- Short circuit protection: breaker 10А gG outside of the circuit
- Mechanical wear resistance: 1х106 commutation cycles
- Operating temperature: -20° to 70°С
- Humidity: 35-85%RH
- Connecting wires torque: 0.15Nm
- Section of the conductor: 1х0.5; 1х0.75; 1х1; 1х1.5; 1х2.5mm2

Mounting:
- To a flat metal or plastic surface with thickness: max 4m
- Size of the opening: Ø22.5mm

Standards: EN60947-1; EN60947-5-1

Gyártó:

ELMARK

Záruka:

3+2

Menovité napätie:

230V

Farba:

Oranž

Druh materiálu:

3+2

Maximálne napätie:

230V

Dĺžka:

Priemer:

Výška:

Šírka:

Hmotnosť:

18 g/db
