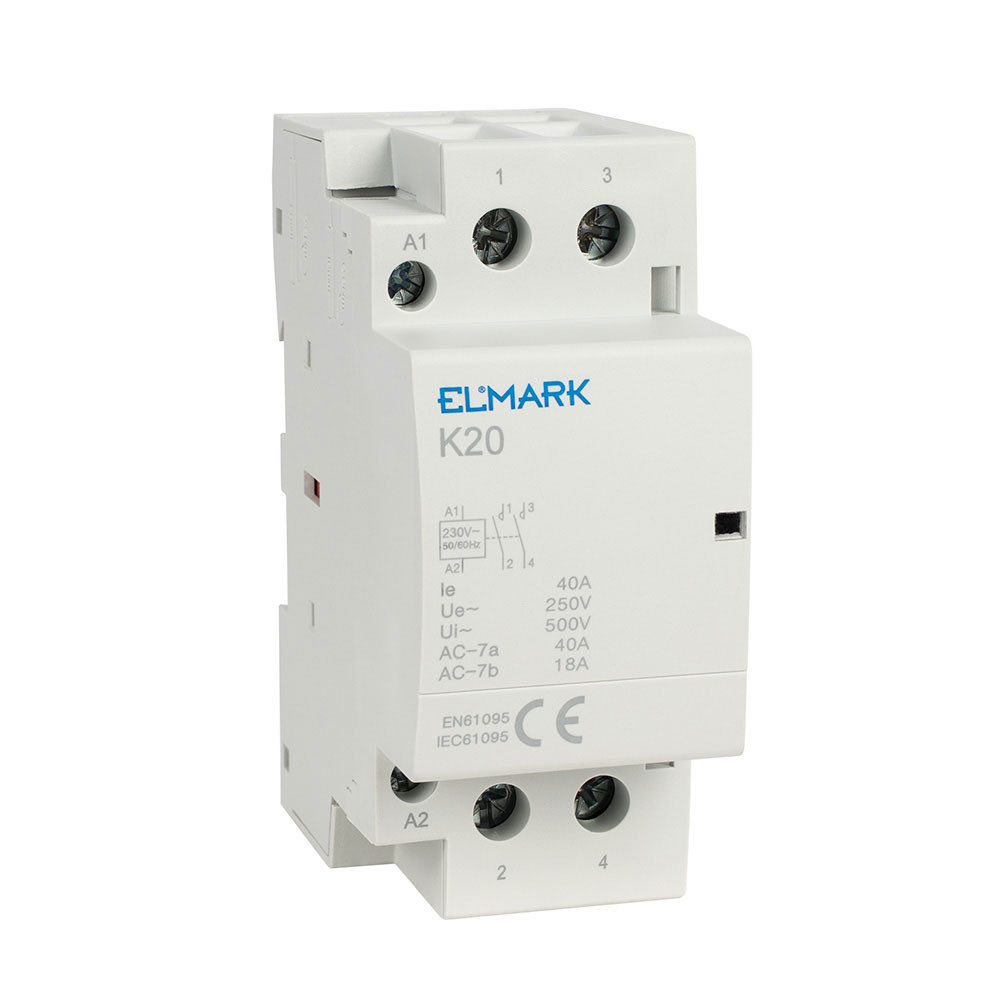

Name: MODULÁRNY STYKAČ K20 40A 230V 2NO
Brand: ELMARK
SKU: 23016
Price: 14.64 EUR
Availability: InStock

Technical characteristics of K series:
- Rated current: 20-63A
- Operation class: АС 7a
- Rated operating voltage of the controlling coil: 230V АC;50/60Hz
- Rated operating voltage of the power circuit: up to 690V АС
- Number of power contacts: 2-4
- Insulation voltage : 690V
- Surge voltage wear resistance: >8000V
- Operating temperature: -10 to +65°C
- Maximum altitude: 2000m

Advantages:
- High reliability of the current parameters
- Secure switching ON or separation of the power contacts
- Compact sizes
- Low levels of operational noise
- Options for selection ot the type of power contacts
- Resistant to UV rays

Functions:
- Switching ON/OFF of electrical circuits under load
- Developing of systems for control of consumers
- Operational element in control boards

Applications:
- Industry
- Administrative and public buildings

Mounting: On a DIN rail or vertical position with maximum gradient of ±5°

Standards: EN61095; EMC; LVD

Gyártó:

ELMARK

Záruka:

5+2

Model:

5+2

Menovitý prúd:

40A

Typ cievky:

230V

Farba telesa:

ELMARK

Druh materiálu:

5+2

Druh stykača:

K20

Dĺžka:

Priemer:

Typ kontaktov:

2NO

Váha:

Striedavý prúd

Napätie cievky:

230V

Počet/typ kontaktov:

Striedavý prúd

Výška:

Šírka:

Hmotnosť:

233 g/db
