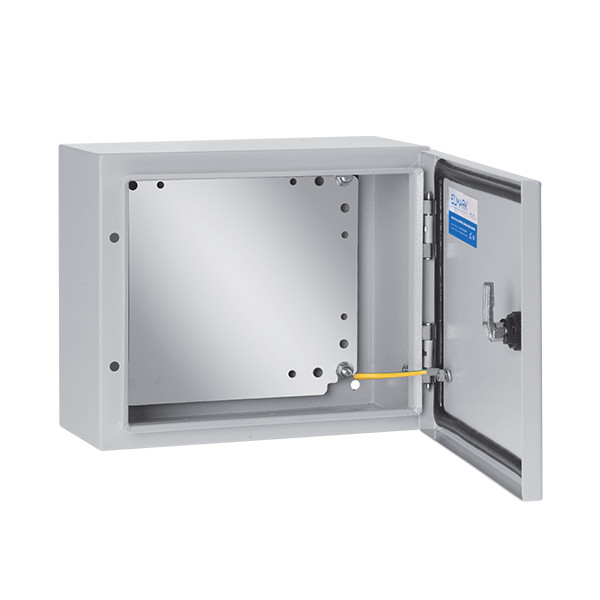

Name: OCEĽOVO-PLECHOVÁ ROZVODNÁ SKRIŇA JXF 40/50/20
Brand: ELMARK
SKU: 53041
Price: 61.26 EUR
Availability: InStock

Technical characteristics:
- Rated voltage: up to 1000V
- Maximum current: up to 1250А
- Dimensions:
= Height: from 250 mm to 1800mm
= Width: from 250mm to 10000mm
= Depth: 150mm/ 200mm /250mm /300mm
- Mounting plate for fixing of the equipment
- Cover for the input-output conductors
- Grounding dowel pin
- Material: Steel
- IP code: IP65

Advantages:
- Option to change the opening direction
- The anti-corrosion coating prevents from rust forming
- Supplied with metal plate for fixing the electrical devices
- Locking mechanism which prevents from free access to the electrical materials mounted in the board

Functions:
- Provide safe from atmospheric conditions and mechanical intervention environment of the equipment mounted in the board
- Used for protection, providing safety from accidental contact to the current leading parts if working close to the board
- Prevent from accidental technological switching
- Used in building, domestic and office automation
- Used in cases requiring mounting the board outdoors

Applications:
- Industry
- Production
- Residential and office buildings
- Outdoor installation

Mounting: Vertically on a flat surface

Standards: EN62208; EN60439-1; EN60439-3

Gyártó:

ELMARK

Teplota farby:

JXF

Typ:

OceÄ¾

Záruka:

3+2

Model:

JXF

Menovitý prúd:

250A

Menovité napätie:

IP65

IP kód:

IP65

Farba telesa:

ELMARK

Druh materiálu:

OceÄ¾

Dĺžka:

Priemer:

Rozmer:

H:400mm L:500mm W:200mm

Výška:

Šírka:

Zásuvka:

1.2 mm

Hrúbka:

1.2 mm

Druh krabice:

1.2 mm

Hmotnosť:

10 kg/db
