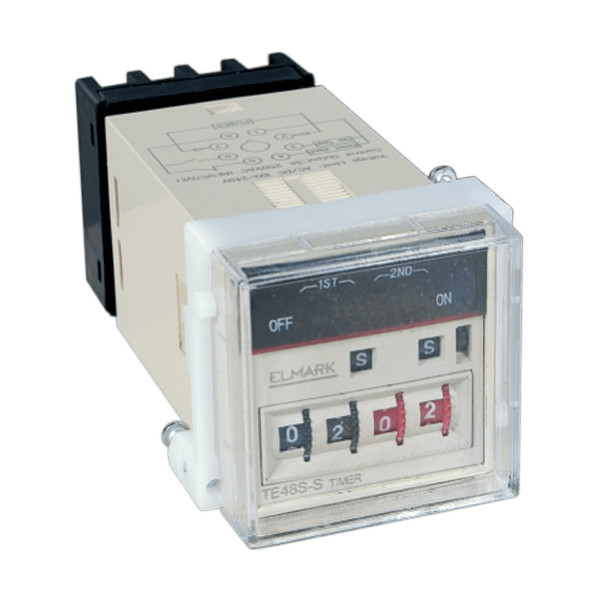

Name: SPÍNACIE HODINY TE48S-S
Brand: ELMARK
SKU: 50105
Price: 45.82 EUR
Availability: InStock

Technical characteristics:
- Power supply voltage: 230V; 50Hz
- Acceptable variation of the input voltage: 85 -110 % U
- Option for selection of operating range:
from 1 to 99 seconds
from 1 minute to 99 minutes
- Error: <0.01% ±0.05 s
- Minimum duration of the input impulse: 20ms
- Power consumption: < 5VA
- Electrical wear resistance: 107 cycles
- Mechanical wear resistance: 105 cycles
- Operating temperature: -10 - +55°С
- Temperature of storage: up to 70°С
- Humidity: 45 - 85%RH
- Commutation capacity at load: 3А
- Weight: 300g

Mounting:
- On the front panel of the board

Gyártó:

ELMARK

Záruka:

3+2

Druh materiálu:

3+2

Rozsah nastavenia:

1 sec.- 99 min.

Dĺžka:

Priemer:

Výška:

Šírka:

Prepätie:

Aktívna záťaž:

Počet tlačidiel:

Hmotnosť:

180 g/db
