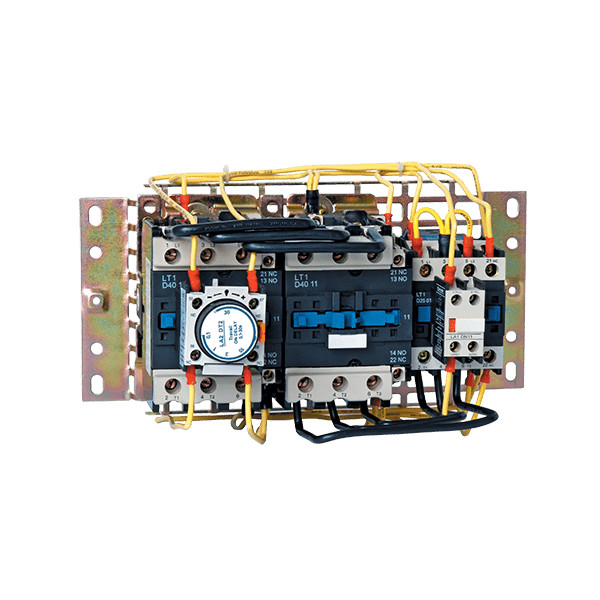

Name: SPÚŠŤAČ HVIEZDA-TROJUH. LT3-D25A 25A/400V 50HZ
Brand: ELMARK
SKU: 43253
Price: 78.4 EUR
Availability: InStock

Technical characteristics of LT3:
- Rated operating current range: to 93А АС
- Rated voltage of the controlling voltage: 400V АС;50/60Hz
- Rated operating voltage: 690V
- Insulation voltage: >690V
- Surge voltage wear resistance: ≥6000V
- Option for change of the power supply operating voltage
- IP code: IP54
- Ambient temperature : -10° to 65ºС
- Maximum altitude: up to 2000m

Advantages:
- Low power consumption and small dimensions
- High reliability of the current parameters
- High efficiency and long term of operation
- The metal body is covered with corrosion-proof paint
- Possibility for operation at higher frequency

Functions:
- Switching on/off alternating current three phase
motors operating according to a scheme “star-delta”
- Does not allow secondary unwarranted switching
on of the starter at transitory lowering of the voltage
- Protects the motor from overload in the range of
the corresponding thermal protection
- Indication of the operating condition through a
valve indicator
- Possibility for mounting of additional contacts (for the open type)

Applications:
- Industry
- Infrastructure

Mounting: To a flat surface using bolts/screws

Standard: EN60947-1; EN60947-4-1; LVD; EMC

Gyártó:

ELMARK

Záruka:

5+2

Model:

HVIEZD-TROJUH bez krab

Menovitý prúd:

25A

Typ cievky:

400V

Druh materiálu:

5+2

Rozsah nastavenia:

Fixné

Dĺžka:

Priemer:

Napätie cievky:

400V

Výška:

Šírka:

Maximálny prúd:

Nie

Krabica:

Nie

Typ ističa:

Nie

Hmotnosť:

1,821 kg/db
