The main benefit comparing to analog LED strips is that you can control every section of LEDs, separately. Traditionally, it is achieved thanks to additional chips (IC) assembled directly inside the
LED diode or on the digital strip board.
Each group of LEDs has an integrated circuit chip, and this integrated circuit chip controls the change of color and brightness of this group of LEDs. When switching the power, the current passed through the LEDs, causing LEDs to light up at their default settings.
To create an effect, you need to enter a command on the controller.
Technical data:
• Type: Digital RGBCCT+IC LED strip
• Input voltage: 220-240V
• LED Driver and strip voltage: 24V DC
• Colour temperature: RGB+ adjustabe white
colour
• White colour lumens: 68lm/W
• LED chip: SMD 2835
• LED QTY:
RGB: 30LED/m
3000K: 30LED/m
6500: 30LED/m
• Beam angle: 120°
• CRI>80
• LED strip length: 5m
• PCB board: 12mm double
• IP code of LED strip: IP20

Údajov

Typ:

Digital RGBCCT+IC LED strip

Záruka:

3+0

Model:

3+0

Menovité napätie:

220V

Výkon:

24W

IP kód:

IP20

Svet. zdroje zahrnuté:

Digital RGBCCT+IC LED strip

Druh materiálu:

3+0

Maximálne napätie:

220V

Dĺžka:

Priemer:

Výstupné napätie:

220-240V

Výstupné prúd:

220-240V

Výška:

Šírka:

Ovládacie zariadenie:

24V/24W (1A)

Priemerná životnosť:

RGB+CCT

Farba droja svetla:

RGB+CCT

Invertér:

RGB+CCT

JN oszlop:

5000mm

JO oszlop:

150

JP oszlop:

5000mm

Priemer skrutky:

150

JQ oszlop:

5000mm

Hmotnosť:

259 g/db

Hodnotenia

Neexistuje žiadny názor

Napíšem recenziu!

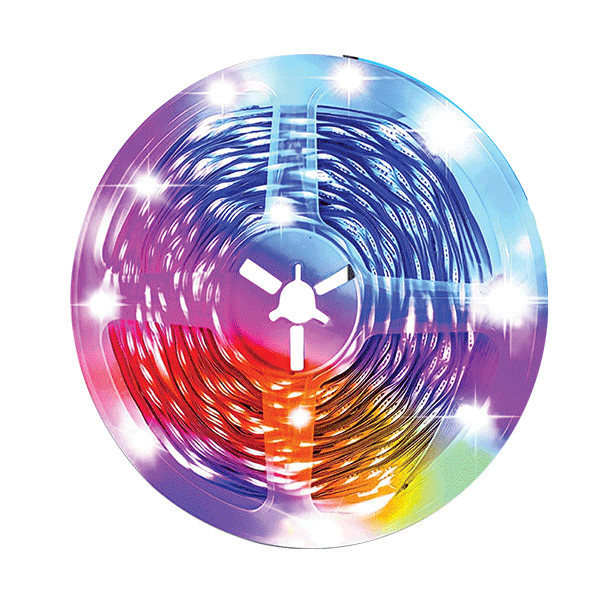

TUYA DIGITAL LED STRIP RGBCCT+IC IP20 5M, SET
